[172] Reducing valve with bellows and spring, May 19 1937

Photographer

Esther C. Goddard

Preview

Description

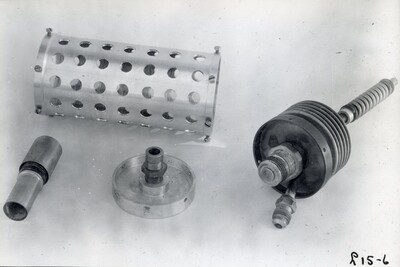

Photograph of a reducing valve with bellows and spring used in the L15 flight test, which took place on May 19, 1937. The rocket for this test had streamlined retractable air vanes and a wire-wound pressure storage tank. This flight saw improved stabilization and an altitude of 3,250 feet.

Between May 11, 1936 and August 9, 1838, Robert Goddard conducted the L-Series of tests in Roswell, New Mexico. Goddard and his wife Esther lived in Roswell from 1930 to 1932 and 1934 to 1942 as a result of Guggenheim-funded grants, allowing Goddard to conduct his research and experiments with rocketry. The L-Series consisted of thirty flight tests divided into three sections (A; L1-L7; B; L8-L15; C; L16-L30) testing ten-inch diameter motors in nitrogen-pressured rockets. Seventeen of these tests were flights tests, while the other thirteen were static tests. The L-Series tackled a range of variables and challenges that came with building larger rockets. Reel 8 of The Goddard Rocket Film Reels contains 22 minutes of footage from the 'L' tests.

The missiles constructed for this L-series started out shorter and heftier (at about eighteen inches in diameter) and grew longer and leaner over the course of the tests. By L7, Goddard switched from one larger motor to four smaller combustion chambers. The consistent problem preventing high-altitude flights was the burning of combustion chambers. Goddard steered away from methods of regenerative cooling that had been developed and stuck to curtain cooling. Goddard and his team, not to mention the Guggenheim Foundation funding him, would have to wait until L13 to achieve another high-flying rocket.

'The Goddard Rocket Researches: A Photographic Record' is an annotated photo album covering Robert H. Goddard's work and experimentation with rocketry. It was assembled and curated by Esther Goddard sometime after her husband's passing in 1945. Additionally, almost all of the photographs were taken by Esther herself.
